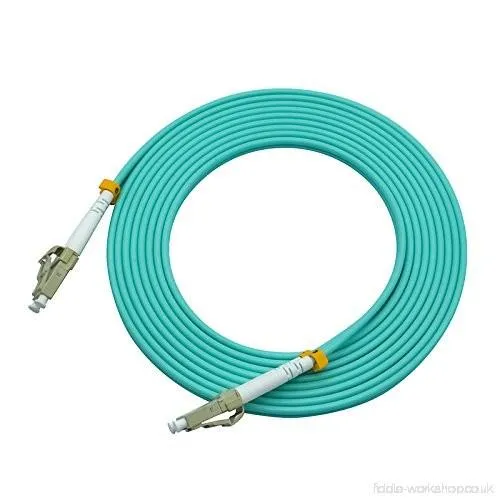

LC to LC 10G OM3 Fiber Patch Cord 2.0mm Duplex

Certification : RoHS, CE, ISO9001, VDE

MOQ : 1

Price : 1

Connection Structure : LC

Material Shape : Round Wire

Allowed Lateral Pressure : 100(N/100mm)<1000(N/100mm)

Allowed Tensile Strength : 100N<1000N

Core : Multicore

Sheath Material : PVC

Cover Material : PVC,LSZH

Type : Simplex,Duplex

Length : 1m, 2m or Other Length

Diameter : 0.9,2.0,3.0mm

Insertion Loss SM : ≤0.25dB

Insertion Loss MM : ≤0.30dB

Return Loss SM : ≥45dB

Return Loss MM : ≥35dB

Operating Temperature : -40°C~+75°C

Contact Now

LC to LC 10G Multimode OM3 Fiber Optic Patch Cords

Details:
1.Item: Nice price OEM service fiber patch cord
2.Connector: LC,SC,FC,ST etc
3.Inserted core cover: PC,UPC,APC
4. Fiber type: singlemode,multimode,OM3
5. Cable type: simplex,duplex,bundle,ribbon
6. Cable diameter: 0.9/2.0/3.0mm
7. Cable color: yellow,orange,aqua,grey etc

Description:
1.Various connector type available
2. Low back reflection loss
3. Compact size
4. Low insertion loss
5. High Return Loss
6. Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
7. Singlemode Fiber or Multimode Fiber Available (For Simplex or Duplex)

Applications:
1.Communication rooms
2.FTTH (Fiber to The Home)
3.LAN (Local Area Network)
4.FOS (fiber optic sensor)
5.Fiber Optic Communication System
6.Optical fiber connected and transmitted equipment
7.Defense combat readiness

Specifications:

Item	Mode Type	PC	SPC	UPC	APC
Insertion Loss	SM	≤0.25dB	≤0.20dB	≤0.20dB	≤0.20dB
Insertion Loss	MM	≤0.30dB	≤0.20dB	≤0.20dB	≤0.30dB
Return Loss	SM	≥45dB	≥50dB	≥55dB	≥65dB
Return Loss	MM	≥35dB	≥35dB	≥35dB	≥35dB
Repetition Test		Additional Loss≤0.1dB,Reture Loss Variability<5dB
Temperature Stability(-40°C~85°C)		Additional Loss≤0.2dB,Reture Loss Variability<5dB
Operating Temperature		-40°C~+75°C
Storage Temperature		-40°C~+85°C
-Option:CableDiameters;0.9,2mm,3mm&others
-Type:simplex,duplex,Matrial Type:pvc,hytrel,LSZH,OFNP,OFNR

LC to LC 10G OM3 Fiber Patch Cord 2.0mm Duplex

Any question about this multimode fiber patch cord,please leave me an inquiry or contact me directly.
