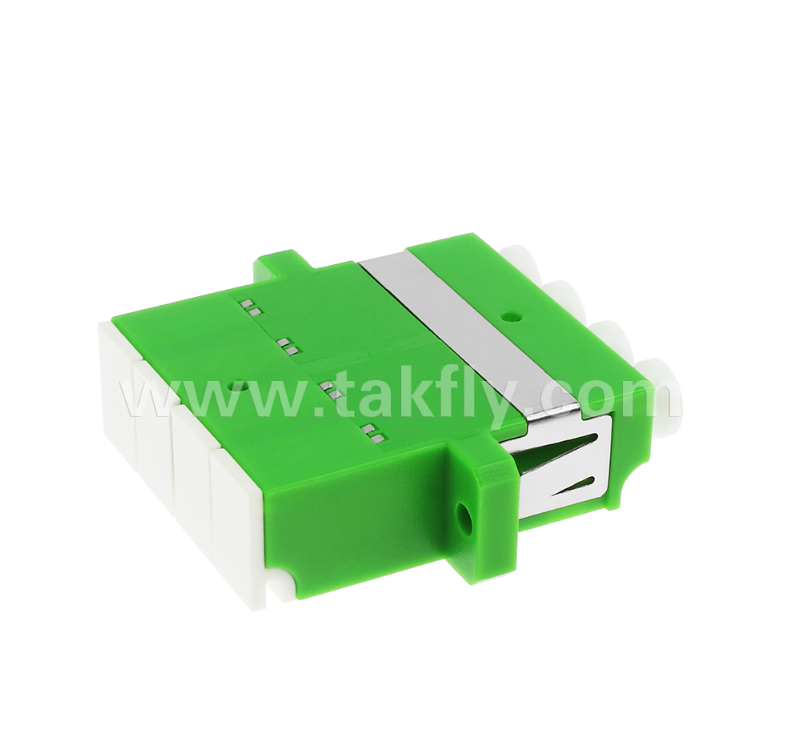

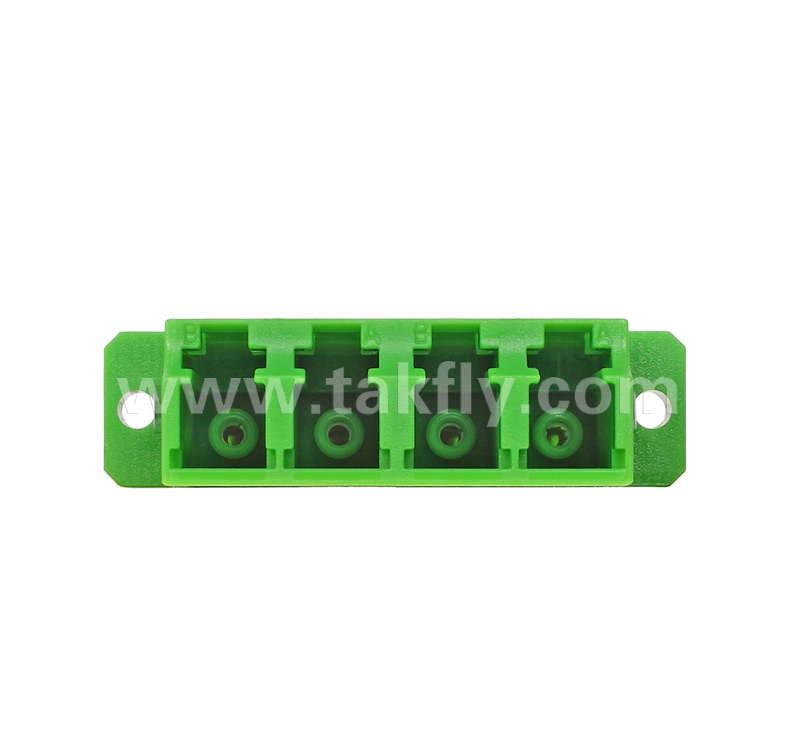

LC Quad Inner Shutter Adapter – 4-in-1 LC Duplex APC with Built-in Shutter
High-density fiber optic adapter integrating 4 LC duplex ports into a single compact panel for efficient simultaneous multi-channel optical transmission. Designed for cable-to-cable and cable-to-equipment connections in space-constrained environments.
Laser Eye Protection Safety Feature
Built-in inner shutter automatically closes when no connector is inserted, preventing harmful laser emissions and protecting operators' eyes from potential injury. Essential for high-power optical networks where invisible laser radiation poses serious risks.
APC Polishing Advantage
APC (Angled Physical Contact) polish features an 8° angled end-face that significantly reduces back reflection (≥60dB). Ideal for CATV, RF video transmission, high-speed coherent optics, and applications requiring superior signal quality and low return loss.
Key Features
- 4-in-1 high-density LC duplex APC adapter
- Built-in inner shutter for laser safety
- APC polishing with 8° angled end-face
- ≥60dB return loss performance
- IEC & RoHS compliant
- Compact design for space-constrained installations

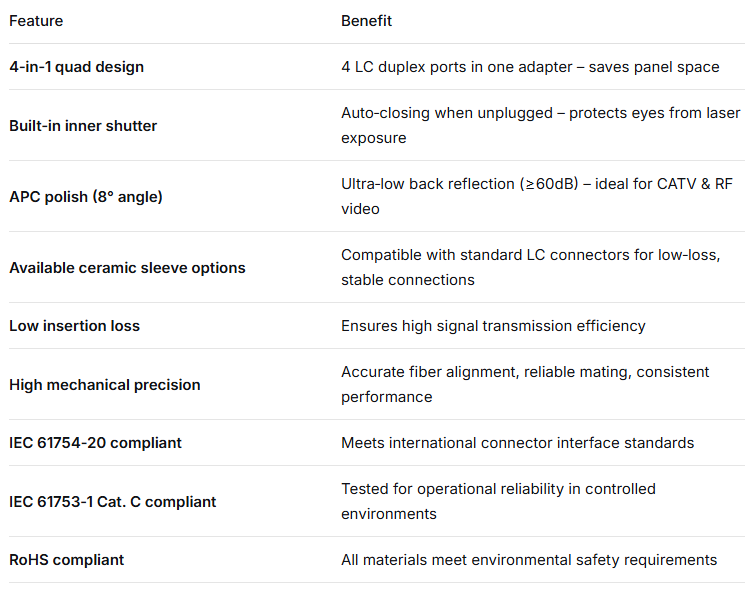

Technical Specifications
Applications
- Data centers and server rooms
- High-power fiber connections
- CATV and RF video transmission systems
- Telecommunications networks
- Enterprise network infrastructure
- Fiber-to-the-home (FTTH) deployments
Why Choose TAKFLY?

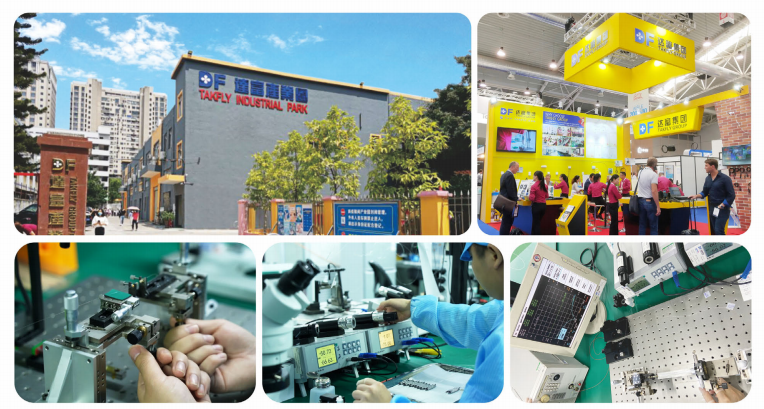

26 years of manufacturing experience in fiber optic products
- Experienced assembly team: 80+ workers with 6+ years experience
- Strong R&D capability: 10+ engineering specialists
- Advanced production equipment: 16 German injection machines
- Comprehensive testing facilities: 30+ testing instruments including OTDR, ILD, VFL, RL, IL
- OEM branding accepted - custom logo available
Quality Control Process
- Incoming inspection: Raw materials spot check
- In-process inspection: Full inspection at each production stage
- Pre-packaging inspection: Finished products full inspection
- Pre-shipping inspection: Final spot check before delivery
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available
